Yes, we can also offer you HUBER air filter plants with an integrated activated carbon filter. In addition, we offer the possibility of providing our systems for retrofitting an activated carbon filter.
Aeration / deaeration plant L361
Aeration/deaeration plant, max. throughput 3170 gal/min (720 m³/h)
Natural aeration/deaeration plant with air connections on both sides to improve the hygiene in drinking water reservoirs.
Constructed entirely from 1.4307 (AISI 304 L) stainless steel, except the filter material. The components are shielded arc welded, acid-treated in a pickling bath and passivated for maximum durability and corrosion resistance.
Louvre, attack-proof, pre-finished, rigid design, with a stable frame, slats and 1 x 1 mm insect screen.
The air line is provided in partial lengths tailored to the specific local conditions, with a connecting plate designed to suit the louvre for air-tight bolted mounting to the interior structure wall, with pipe connection piece included.
Air filter unit L361 with connection pieces on both sides, suitable for the air line, with fine filter and filter for suspended matter, with two DN 1/2“ stainless steel condensate drains upstream and downstream of the filter package, each with check valve, including wall mounting brackets.
The air filter unit is specifically designed for direct integration into the air line. It incorporates a fine material filter installed in the air line filter class ISO ePM10 75% according to EN ISO 16890 and serves as second filtration stage. This filter extends the lifespan of the subsequent suspended material filter, which serves as the third stage. This suspended material filter, classified as H13, achieves a separation efficiency of at least 99.99 % in accordance with DIN EN 1822. Both filters consist of a germ-resistant material, ensuring drinking water hygiene is maintained even under conditions of high contamination and humidity.
Safety valve as an additional overpressure/underpressure protection to protect the structure in case of malfunctions. The reaction pressure 0.14 psi / 1000 Pa.

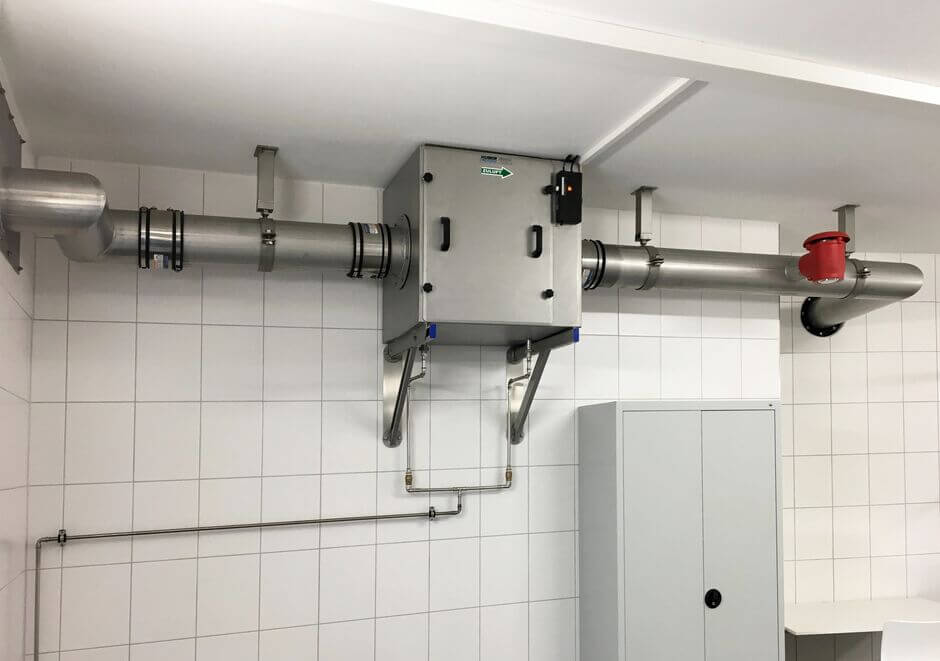

HUBER Aeration / Deaeration Plant L361

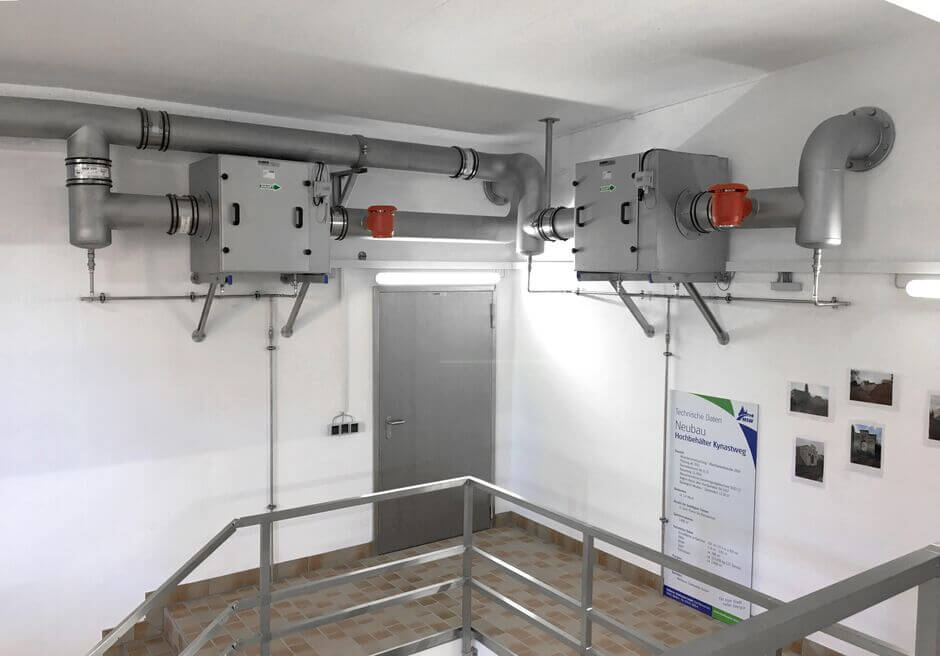

Ventilation of two separate water chambers by a HUBER air filter unit

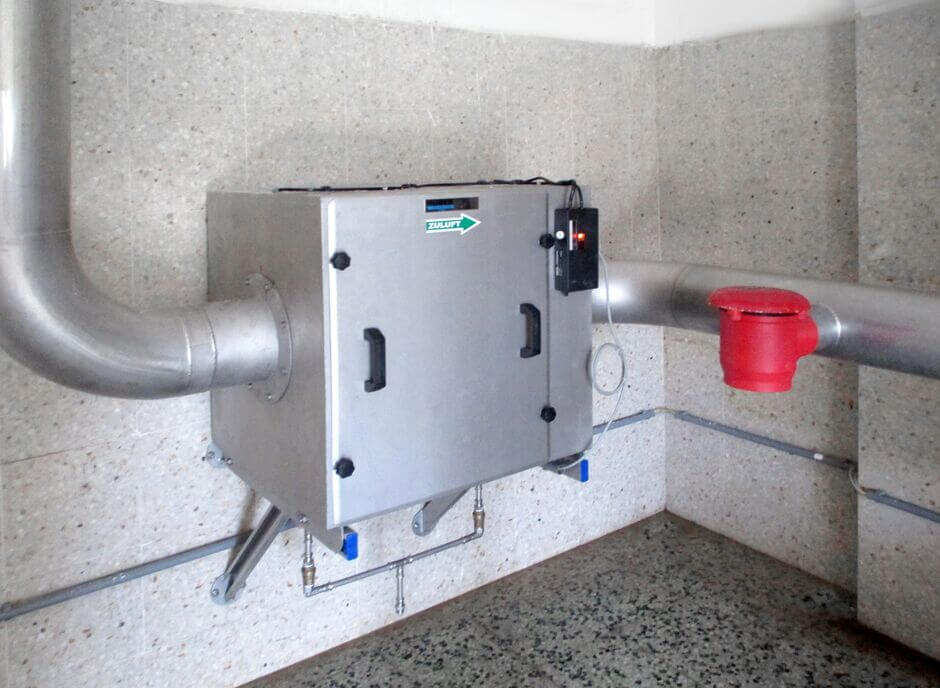

HUBER air filter unit with safety valve in case of emergency

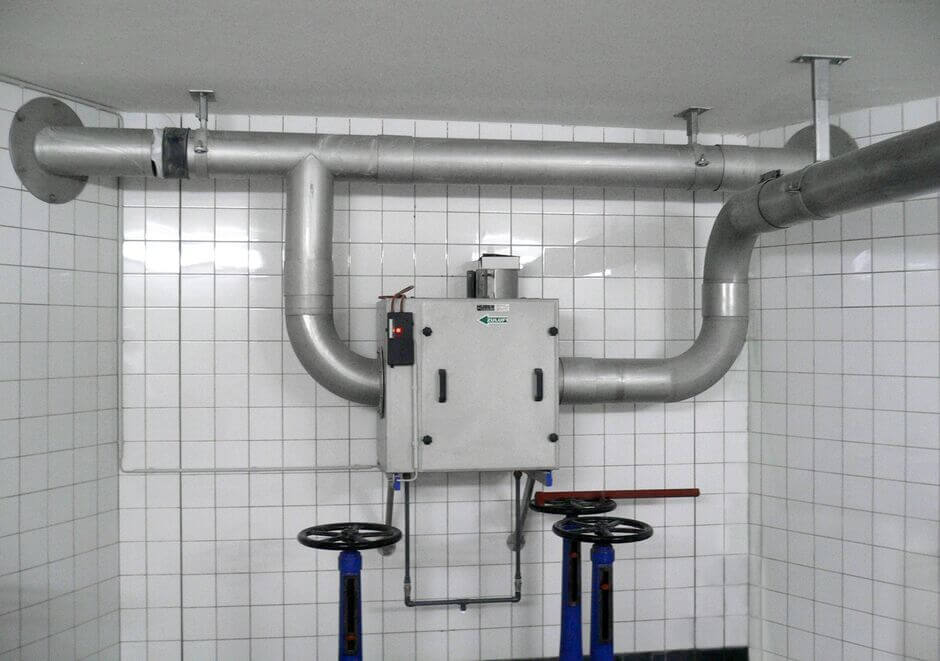

HUBER air filter unit with analogue differential pressure display

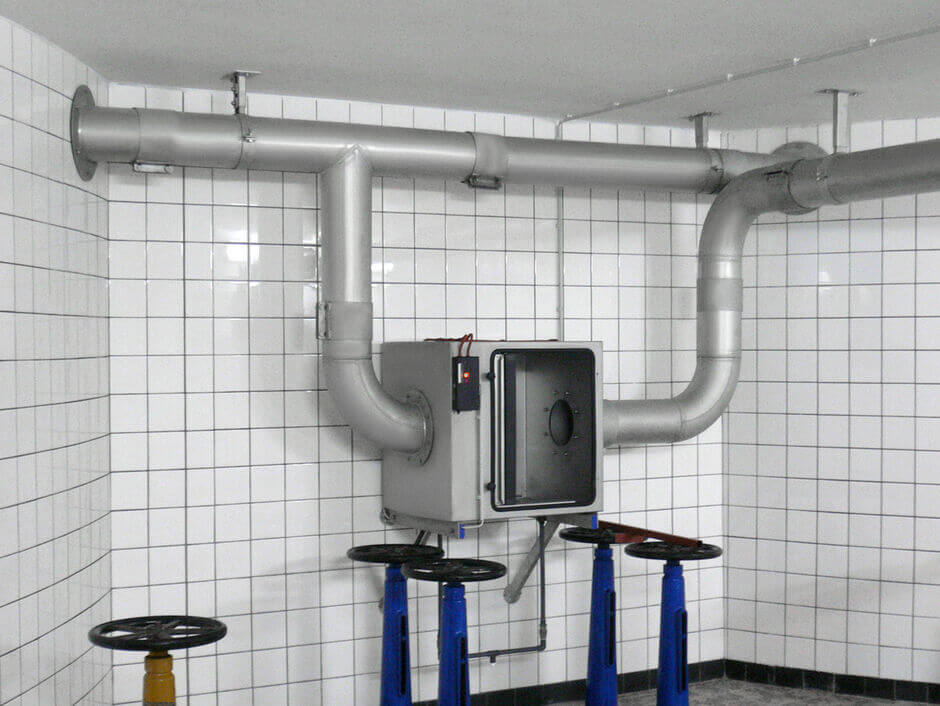

Maintenance opening for easy filter replacement

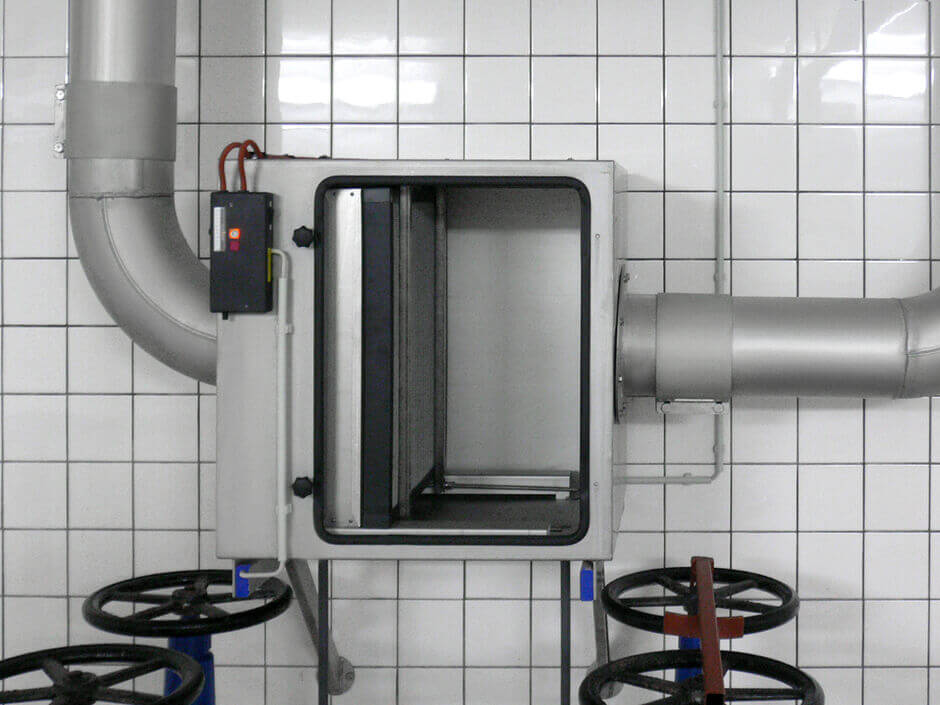

Pre-filter and HEPA filter in the HUBER Aeration and Deaeration plant

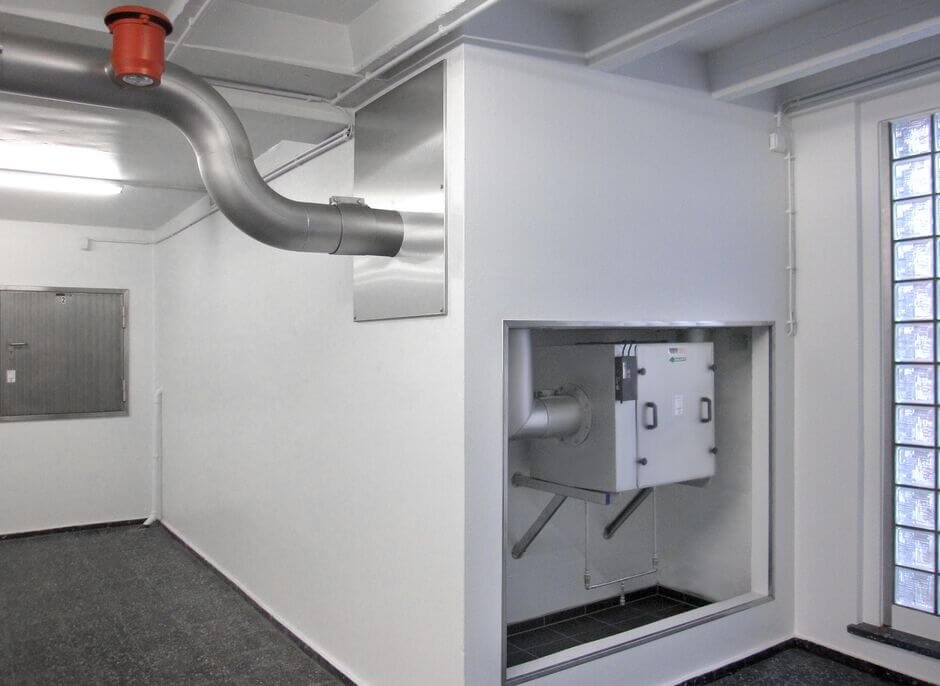

HUBER air filter unit and HUBER Water Chamber Door TT1.1 W in the background

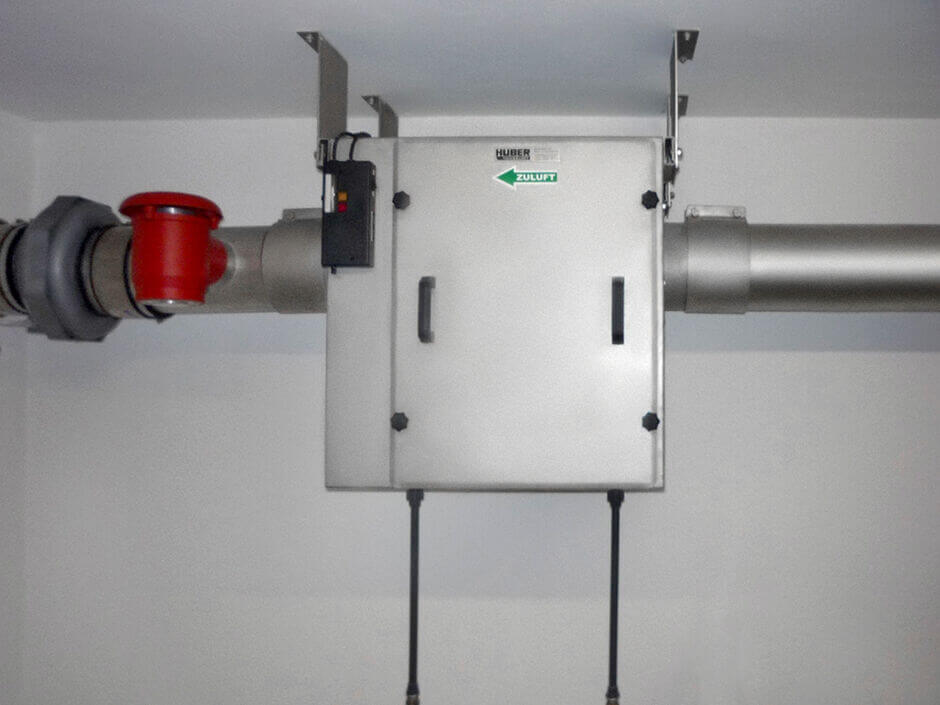

Active forced ventilation of the drinking water tank
Options
Optional equipment and spare parts
- Fine filter, filter class ISO ePM10 75%, in compliance with EN ISO 16890, for type 361.
- Suspended material filter, filter class H13, separation efficiency 99.99% in compliance with DIN EN 1822, for type 361.
Other Options
- 1.4404 (AISI 316 L) stainless steel
- Radial pipe ventilator for installation in DN air line, for forced ventilation
- With power supply unit for regulating the pressure transducer from 230V to 24V.
Downloads
Customer Information and Documents
FAQ
Frequently Asked Questions
If there are no water level fluctuations in the drinking water reservoir and therefore no natural air exchange can take place, we can optionally work with a fan in the air duct. This ensures an optimal air exchange in the reservoir.
The air filters installed in HUBER aeration/deaeration plants comply with the current standards EN ISO 16890 and DIN EN 1822.
