HUBER Active Carbon Filter CONTIFLOW® GAK Quaternary treatment for the removal of micropollutants

  • Simple process for the removal of trace substances (fourth treatment stage)
  • No shutdowns necessary for cleaning
  • Reuse of the activated carbon

Especially municipal sewage plant effluents are among the most critical paths of entry for micropollutants into surface waters. Many of these so-called trace substances are hazardous to the environment and health, are not readily biodegradable and can accumulate in the environment.

With the HUBER Active Carbon Filter CONTIFLOW® GAK, HUBER has developed a versatile and reliable key component for the removal of trace substances (fourth treatment stage), which, cleverly combined with the HUBER Pile Cloth Media Filter Rotafilt® or the HUBER Sandfilter CONTIFLOW®, represents an ideally matched process solution.

However, also in industrial wastewater treatment, the HUBER activated carbon filter CONTIFLOW® GAK finds a steadily growing field of application. Especially when it comes to removing dissolved organic COD compounds and pollutants to meet stricter discharge criteria, adsorptive treatment stages with the HUBER Active Carbon Filter CONTIFLOW® GAK are the technology of choice.

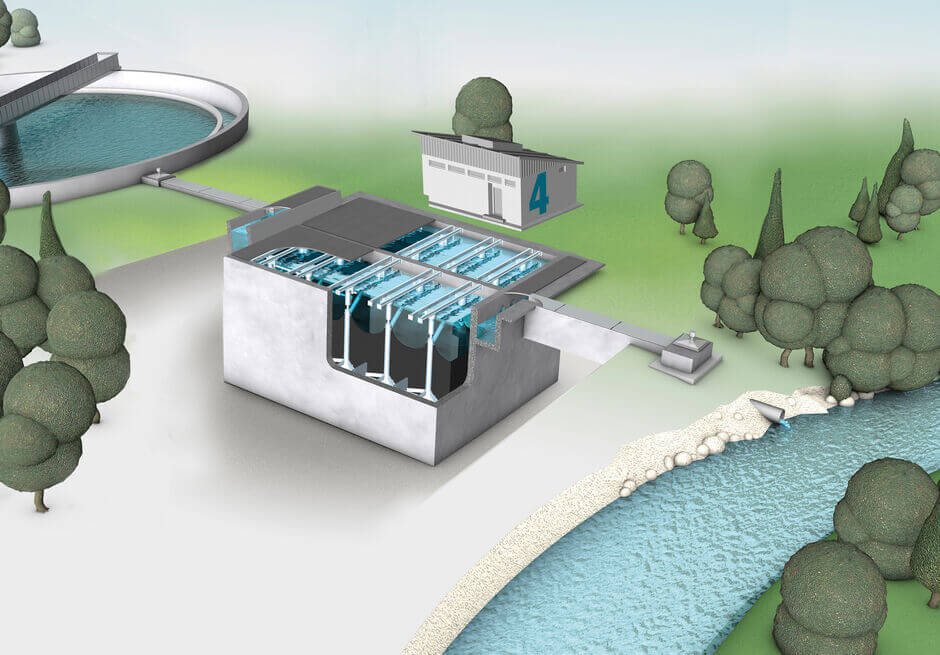

HUBER Active Carbon Filter CONTIFLOW® GAK
HUBER Active Carbon Filter CONTIFLOW® GAK
HUBER Active Carbon Filter CONTIFLOW® GAK
HUBER Active Carbon Filter CONTIFLOW® GAK

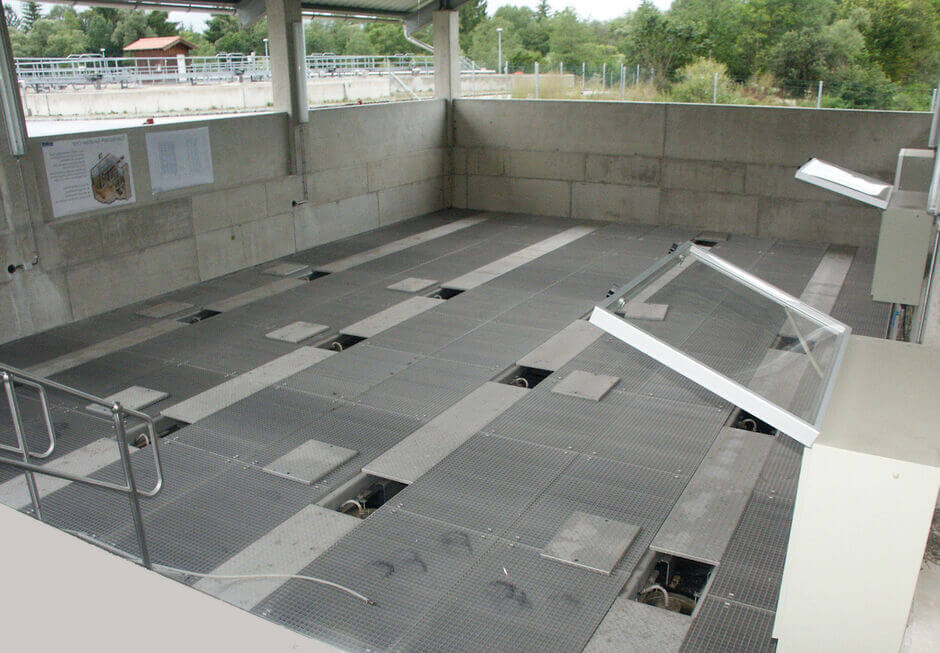

HUBER Active Carbon Filter CONTIFLOW® GAK (tank design)
HUBER Active Carbon Filter CONTIFLOW® GAK (tank design)

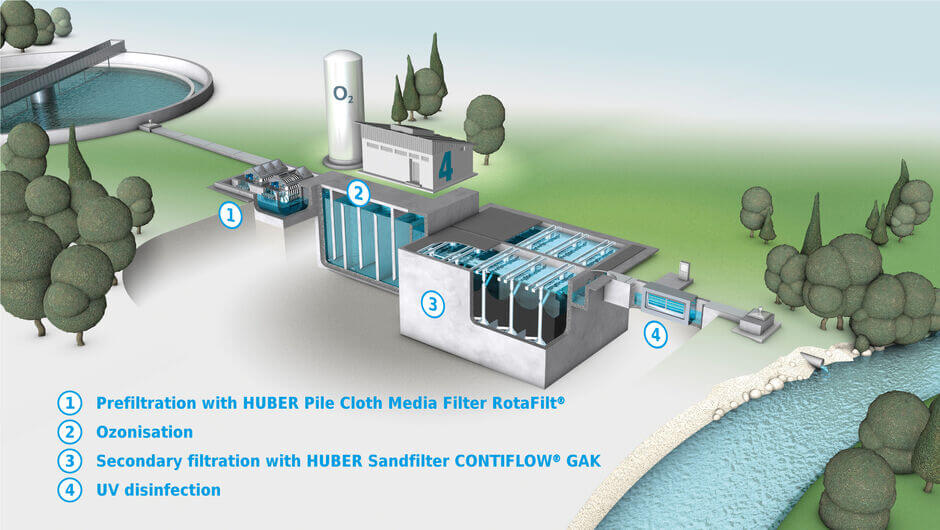

Design sketch/Variant 1: Combination of ozonisation with subsequent activated carbon filtration (GAK), upstream cloth filtration (police filter) and downstream UV disinfection
Design sketch/Variant 1: Combination of ozonisation with subsequent activated carbon filtration (GAC), upstream cloth filtration (police filter) and downstream UV disinfection

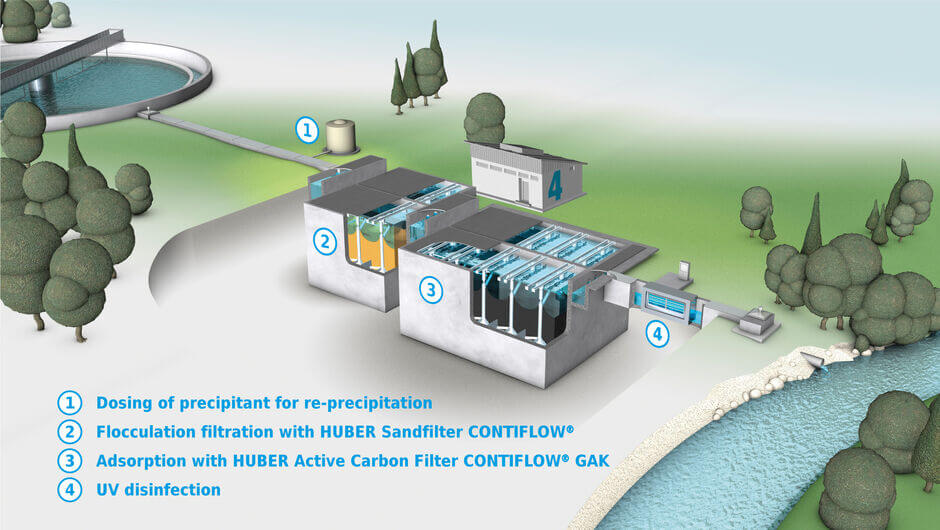

Design sketch/Variant 2: Flocculation filtration for phosphorus elimination with subsequent activated carbon filtration (GAK) and downstream UV disinfection
Design sketch/Variant 2: Flocculation filtration for phosphorus elimination with subsequent activated carbon filtration (GAK) and downstream UV disinfection
1/5
Design sketch: HUBER Active Carbon Filter CONTIFLOW® GAK
Design sketch: HUBER Active Carbon Filter CONTIFLOW® GAK

Design and Function

Design sketch: HUBER Active Carbon Filter CONTIFLOW® GAK
Design sketch: HUBER Active Carbon Filter CONTIFLOW® GAK

The HUBER Active Carbon Filter CONTIFLOW® GAK is an upflow active carbon adsorber with granulated activated carbon (GAC) as filling. It has a modular design and is available as a stainless steel tank or optionally as concrete construction.

The HUBER Active Carbon Filter CONTIFLOW® GAK is designed for continuous operation. This means that no feed interruptions are necessary for cleaning the activated carbon.

As the inflow slowly streams through the activated carbon bed from bottom to top, dissolved organic particles such as trace substances are adsorbed on the large inner surface of the activated carbon. The purified water flows off via a weir in the upper part of the filter.

As the pressure loss increases, the activated carbon is gently conveyed from the bottom of the hopper into the scrubber located at the top, where it is cleaned from particulate residues. The particles are separated with a small partial flow, the so-called wash water.

The activated carbon, which has been cleaned of solids but is still partially loaded with micropollutants, then falls back down onto the filter bed, creating an internal activated carbon circuit. As operation progresses, the loading on the internal surface of the carbon slowly increases.

Applications

  • Adsorption of trace substances in advanced wastewater treatment (fourth treatment stage)
  • Biological secondary filtration for the removal of trace substances following ozonisation (BAC filtration)
  • Removal of dissolved COD compounds in industrial wastewater treatment (process wastewater, recirculation water)

The benefits of the HUBER Active Carbon Filter CONTIFLOW® GAK

  • Easy to retrofit on existing sewage treatment plants due to modular design
  • No complex carbon dosing technology as with PAC processes
  • No dirt and dust loads as with PAC processes
  • No precautions for explosion protection as with PAC processes
  • No secondary filtration required as with PAC processes
  • No shutdowns necessary for cleaning the activated carbon bed
  • Activated carbon can be regenerated and largely reused
