Attack-proof and weatherproof manhole cover SD7, for flush fitting, load bearing, security tested, rectangular type
Manhole cover, installed flush with the surface for pedestrian and/or vehicle traffic, optionally in class A15 or B125 or D400 or E600.
Weatherproof, odour-tight against pressureless water, attack-proof, rectangular in shape, made of 1.4307 (AISI 304 L) stainless steel.
The access cover consists of a stainless steel tear pattern plate, with additional bracing on the bottom according to the weight (load class), slip resistance in accordance with DIN EN 124-1:2015-09, with a low-wear seal on the cover bottom side, screw lock, including lock system with anti-drilling protection, as standard with hardened safety lock as recommended by criminal investigation departments and in accordance with the normative standards; the profile cylinder in accordance with DIN 18252 to be provided by the customer.
Frost-proof inner hinges, help for opening in the form of stainless steel gas assisted spring dampers, with integrated cover arrestor which can only be undone by hand. A connection for potential equalisation is provided.
Easy-to-install encasing frame, standard height 250 mm, with external wall clamps, provided for embedding in concrete (concrete up to upper frame edge) and for fixing to the casing. Manhole cover and frame shielded arc-welded, acid-treated in a pickling bath and passivated. Operating key included.

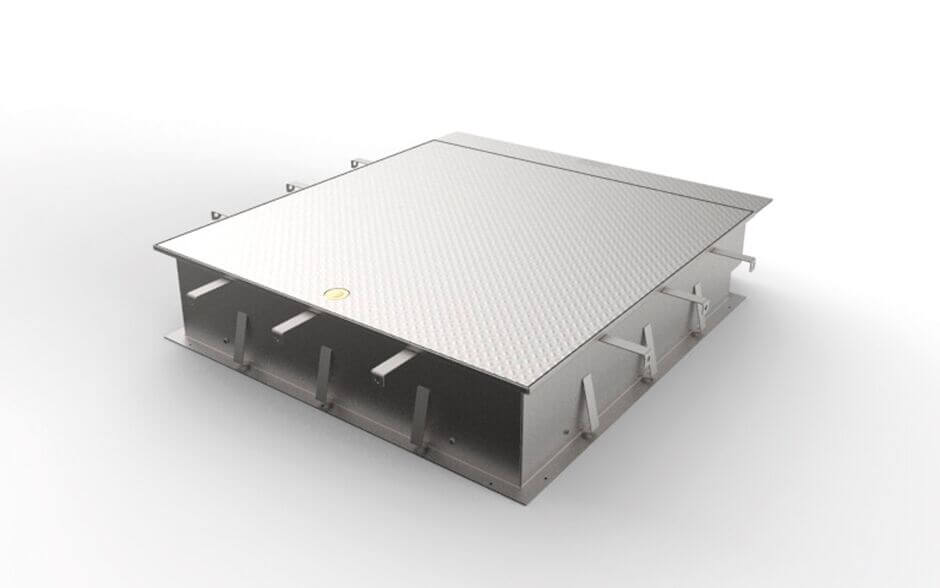

Attack-proof and weatherproof HUBER manhole cover SD7, for flush fitting, load bearing, security tested, rectangular type

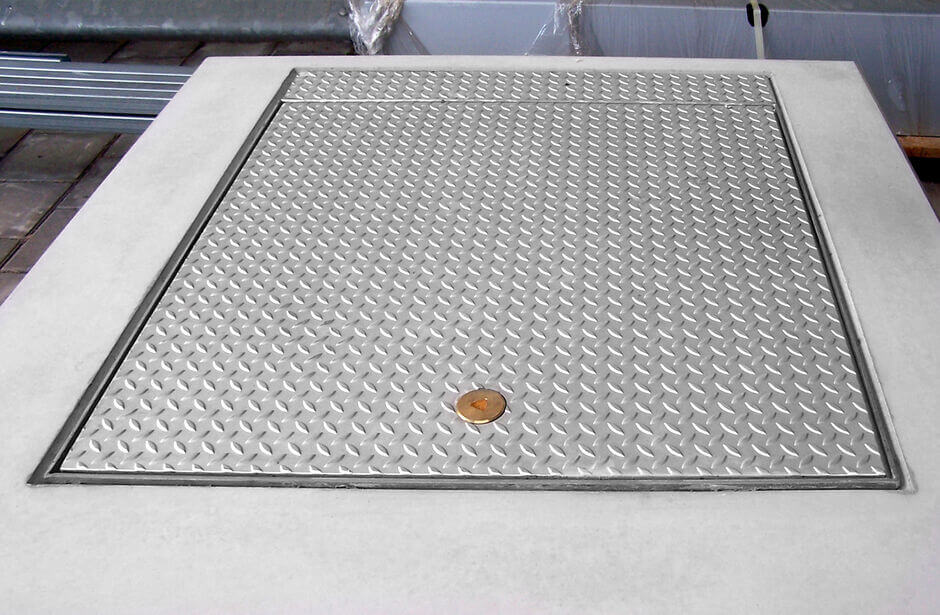

HUBER Manhole cover SD7, for flush fitting, load bearing, attack-proof / security tested, weather-proof, rectangular type

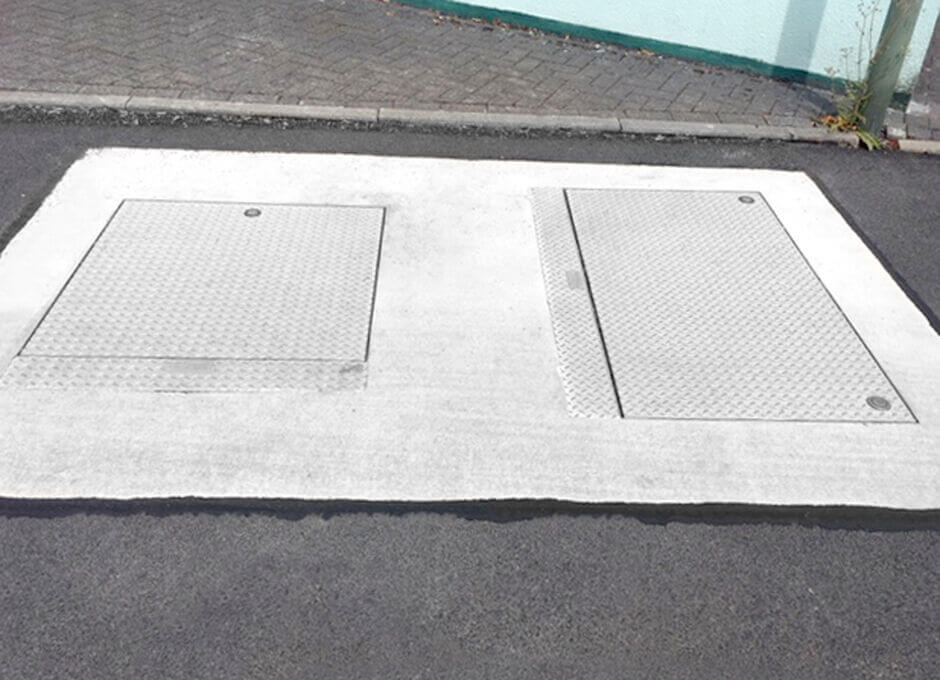

HUBER manhole covers SD7
HUBER manhole cover SD7 with shaft barrier

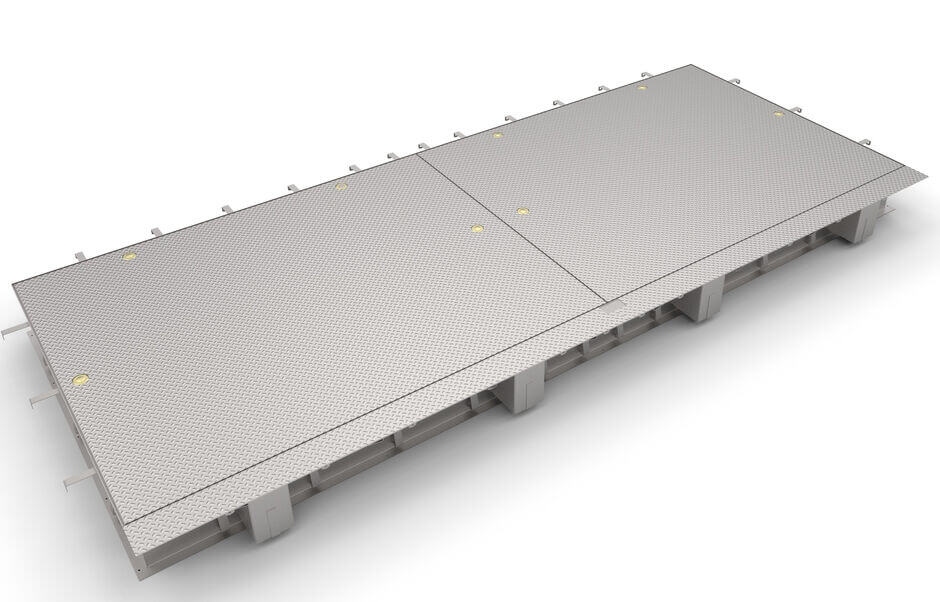

HUBER manhole cover SD7, multipart design

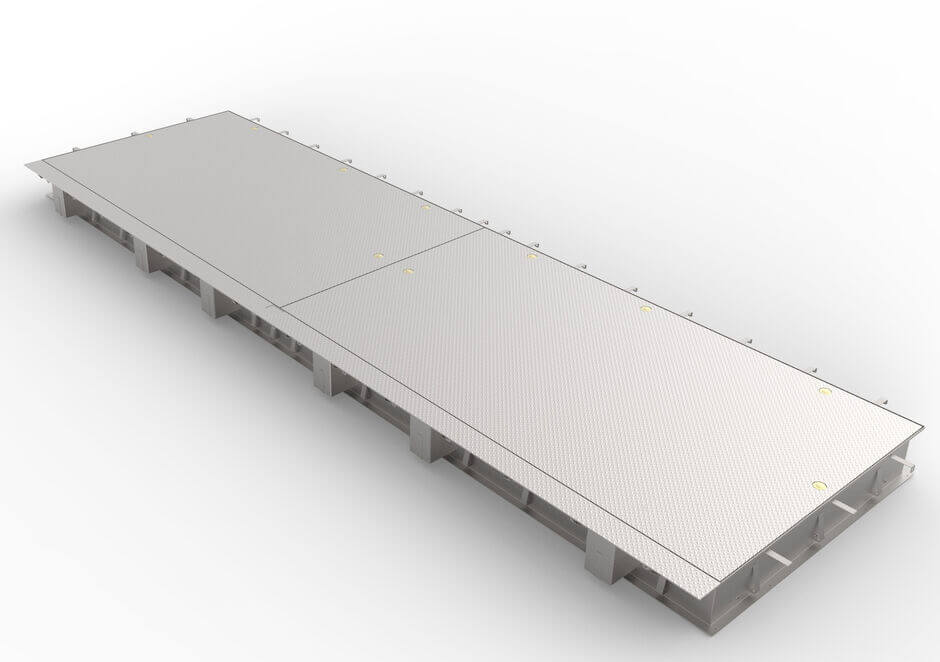

HUBER manhole cover SD7, class D400
Designed for
Secure to prevent forced access, certified to resistance class RC3 according to DIN EN 1627 in class D400 or resistance class RC4 according to DIN EN 1627 in class B125, D400, E600. It meets the requirements of DVGW W 1050 for object protection in water supply structures and is suitable for use in Ex zone 1. However, it is not suitable for big-volume traffic (refer to the definition provided in the Download section).
Designed for a clear width up to and including 1000 mm and certified to:
DIN 1229 / DIN EN 124-1:2015-09 and DIN EN 124-3:2015-09, classes A15, B125, D400, E600 with test certificate and external monitoring.
Designed for a clear width bigger than 1000 mm and statically calculated according to:
DIN EN 1991:2010-12 (Eurocode 1) and DIN EN 1993:2010-12 (Eurocode 3), class EC10 (Pedestrian traffic) and EC100 (Stationary vehicle traffic).
Options
- 1.4404 (AISI 316 L) stainless steel
- Lift-off cover (without spring dampers and hinges)
- Non-standard sizes
- Encasing frame, non-standard installation height
- Designed for dowelling (only possible for class A15)
- Possibility to open the cover from below, the traffic situation to be taken into account
- Suitable for big-volume traffic up to a maximum surface of 1 m² and maximum side length of 1400 mm (no emergency exit possible). (See definition for big-volume traffic below at the Download section)
- Magnetic contact
- Cover insulation
- One-part covers watertight up to 5m WC (class D400 only)
- One-part covers back-water proof up to 5m WC (class D400 only)
- Cover designed as a shell suitable to be filled with mastic asphalt
- Safety guard / barrier
- Safety guard / antifall guard
- Multi-part cover
Downloads
Customer Information and Documents
Datasheet: Manhole cover SD7, for flush fitting
Datasheet: Manhole cover SD7, resistance class RC4
Complete planning documents package for flush fitting manhole cover SD7
Complete planning documents package for flush fitting manhole cover SD7, resistance class RC4
HUBER definition „stationary traffic“-„moving traffic“
Flyer: Security for your infrastructure - Protect facilities and plants against unauthorised access
Flyer: Protect your infrastructure from flooding and other weather extremes
FAQ
Frequently Asked Questions
Manhole covers according to DIN EN 124 are tops and covers for use in vehicular and pedestrian areas. They are classified according to different load classes. HUBER offers covers in the following sizes:
- A 15 for traffic areas that can only be used by pedestrians and cyclists (test load 15 kN).
- B 125 for footpaths, pedestrian zones and comparable areas, car parking areas and car parking decks (test load 125 kN).
- D 400 for carriageways of roads (including pedestrian streets), shoulders of roads and parking areas approved for any sort of road vehicles (test load 400 kN).
- E 600 for surfaces that are driven over with high wheel loads, e.g. dock facilities, aircraft operation areas (test load 600 kN).
The term "surface-watertight” means that the manhole cover is protected against the ingress of natural precipitation such as rain or other surface water that occurs without pressure.
